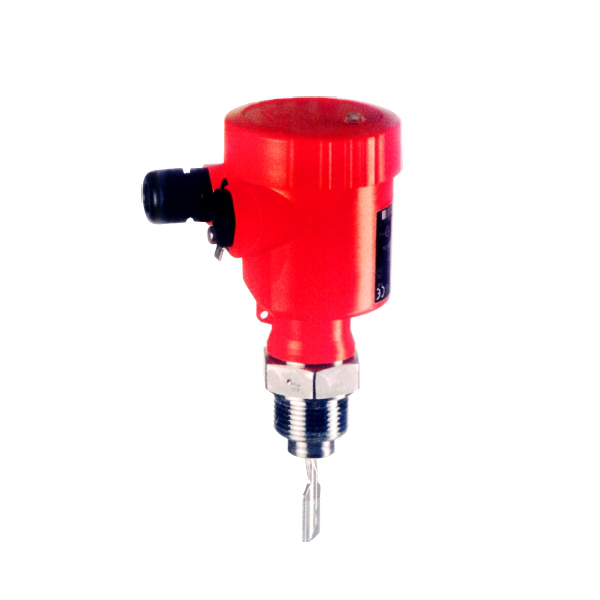

Flow Switch

Flow Switch - Prisma Demande de devis

Série : FS

Prisma Instruments has designed flow switches for the direct control of fluid flow in pipelines and ducts. These switches are magnetically or mechanically actuated. This is simple, reliable and economical solution to control or monitor flow in process lines. GIC offers two types of Flow Switches:

  • Inline Type
  • Top Mounted



This is direct mounted type flow switch in pipe line. This consists of Switch assembly, Body, Bellows and Flapper. This is mounted in

horizontal position. Flapper is connected to bellow assembly. When flow reaches beyond set flow the flapper moves in the direction of flow. The displacement of flapper causes actuation of the microswitch through bellow assembly. Inline type flow switch is available upto 50 NB line size and above 50 NB Top mounted is recommended. There are no vertical moving parts and is therefore maintenance free. These flow switches can be mounted in horizontal as well as vertical lines.

  • Caractéristiques
  • Fiche technique
  • Informations

Spécifications
Type
 Flapper type
Mounting Orientation
 Side Mounted / Top Mounted
Body
 CS, SS 304, SS 304L, SS 316, SS 316L Other on request
Flappers
 SS 304, SS 304L, SS 316, SS 316L Other on request
Bellows
 Phosphorous Bronze
Switch Type
 Snap Acting 1 SPDT / 2 SPDT Microswitch, 5A, 230 VAC
Switch Housing
 Die Cast Aluminium Weatherproof to IP - 65
Die Cast Aluminium Explosion proof suitable for Group IIA, IIB
Die Cast Aluminium Explosion proof suitable for Group IIC
Electrical Connection
 ¾"ET(F)
Process Connection
 Inline : Flanged / Screwed - upto 2"
Top Mounted : Flanged / Screwed - 1¼" and above
Max Operating Pressure
 10 Kg/cm²
Max Operating Temperature 80°C

Télécharger la fiche technique répéteur RS422/485 (PDF Flow Switch )
