Five - Valve, Direct Mounting - H Type
Series: G5VMFF1
Five - Valve Manifold, Direct Mounting - H Type
Â

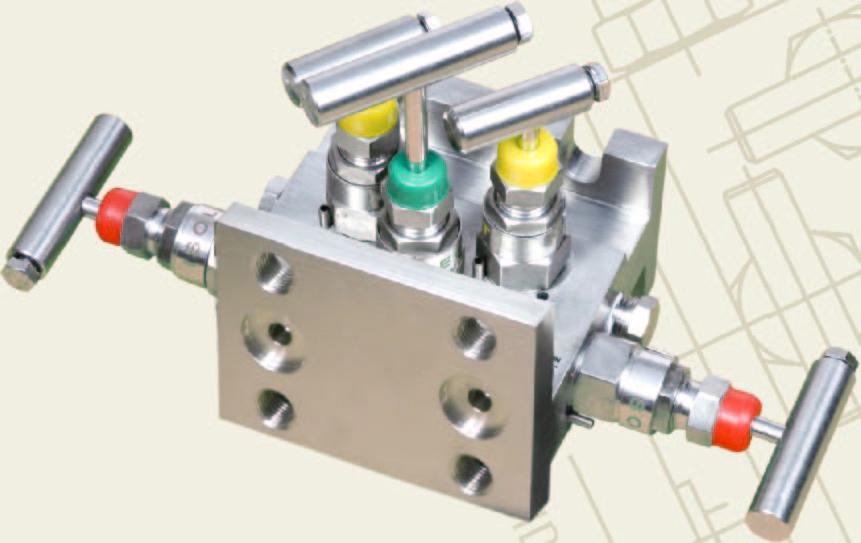

Five - Valve Manifold Model G5 VMFF 1 is designed for direct or remote mounting of differential pressure transmitters. For remote mounting two oval / kidney flanges are used for connecting process pipe to manifold block. These manifold block incorporate five valves, wo main valve for process isolation valve for vent two valves for equalizing.
Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions.
- Caracteristiques
- Fiche Technique
- Informations
Spécifications
|
|
Connections | Process : Flanged Instrument : Flanged Drain/Vent : ÂĽ" NPT (F) |
Test Pressure |
@ 25°C Room Temperature Hydrostatic : Body - 620 bars Seat - 415 bars Pneumatic : Seat - 40 bars |
Gland Packing |
PTFE : Standard GRAPHOIL: Temperatures above 180°C |
Material |
A 105, A 182 GR F 304, A 182 GR F 316, Monel, Hastelloy |
Finish | CS zinc plated. SS Natural |
Mounting Kit | Mounting bracket with U bolts and necessary kits for fitting on 2"NB stanchion pipe stand or wall mount. (to be ordered separately) |
Option | Test Port on precess side with plug. |
Accessory | Mounting Bolts - IS : 1364 - 1960 - 4 Nos Interface seal - PTFE / VITON - 2 Nos |
Télécharger la fiche technique (PDF Five - Valve, Direct Mounting - H Type)
