Five - Valve, Direct Mounting - T Type
Series: G5VMPF1
Five - Valve Manifold, Direct Mounting - T Type
Â

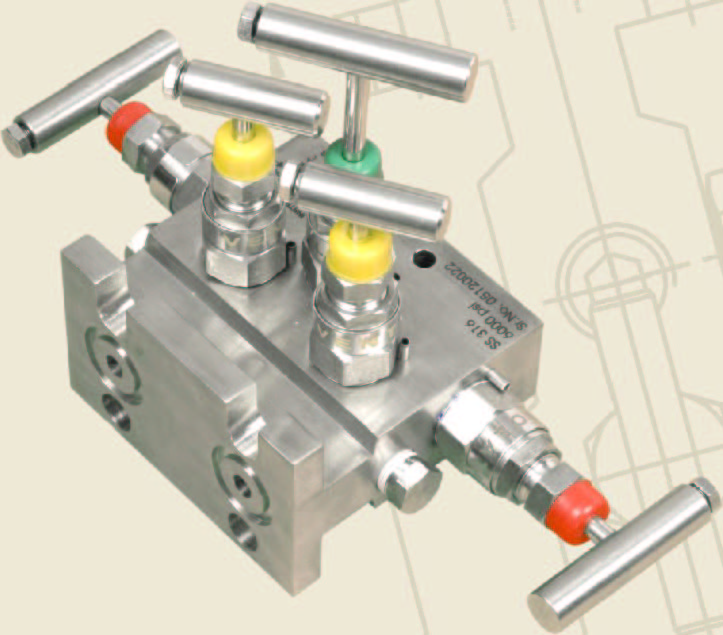

Five Valve Manifold Model "T" type Model G5 VMPF 1 is designed for direct mounting on differential pressure instruments. The manifold incorporates two process isolation valves, one equalizer valve and two drain/vent valves in a compact block. The process connection is threaded for connections by tube or pipe fittings. Dimensions shown are for the standard 54 mm or 2 1/8 inch centres for instrument and process connections but are available for other centres on request. Thread details shown are for standard popular sizes and available to suit other thread standards.
- Features
- Datasheet
- Informations
Spécifications
|
|
Connections | Process : ½" NPT (F) Instrument : Flanged Drain/Vent : ¼" NPT (F) |
Test Pressure |
@ 25°C Room Temperature Hydrostatic : Body - 620 bar Seat - 415 bar Pneumatic : Seat - 40 bar |
Gland Packing |
PTFE : Standard GRAPHOIL: Temperatures above 180°C |
Material |
A 105, A 182 GR F 304, A 182 GR F 316, Monel, Hastelloy |
Finish | CS zinc plated. SS Natural |
Mounting Kit | Mounting bracket with U bolts and necessary kits for fitting on 2"NB stanchion pipe stand or wall mount. (to be ordered separately) |
Option |
Test Port on precess side with plug . |
Accessory | Mounting Bolts - IS : 1364 - 1960 - 4 Nos Interface seal - PTFE / VITON - 2 Nos |
Download the datasheet (PDF Five - Valve, Direct Mounting - T Type)
