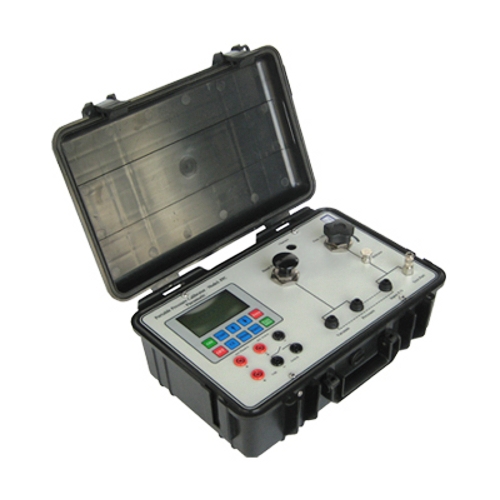

Ideal Lab Site Tool for checking & Calibration of low ranges of pressure in industrial & marine applications :



• Differential Pressure Gauges
• Transmitters
• Indicators
• Pneumatic Receiver Gauges
• Control Valves
• Pressure Transducers
• Loops etc.



• Ranges : -0.85 to 2 / 7 / 10 / 20 Bar
  (For Low & Very Low pressure model : ±2000 / ±5000 / ±8000 / ±10000 mmH2O)
• Accuracy : ±0.025% - ±0.05% - ±0.075% F.S.
• Automatic Temperature Compensation (0 to 50°C)
• Light Weight & Compact
• Trendy, Elegant ‘Rugged' Carry Case - Truly Portable
• Large Graphic Display
• Touch Membrane Keypad
• Selectable Engineering Pressure Units
• DC Current Measurement :50 mA (Active) & 25 mA (Passive)
• Switch Test capability & Zero Offset facility
• Audio & Visual Alarms for Over Pressure
• Pressure Transducer - all Media compatible with SS316
• Rechargeable Battery with ‘Low Battery' indication
• Built-in Pump & Fine Adjustment Vernier Assembly

PPC-P Series : ±0.05% FS Accuracy Models



PPC-P+ Series :±0.025% FS Accuracy Models



PPC-PL Series : For Low & Very Low (mmWC) pressure ranges

• Digital Pressure Calibrator
• Set of Adaptors (BSP & NPT) #

• Test Leads & Seals Kit
• Hose with End Fitting
• External Battery Charger
• RS-232 Computer Interface

• Traceable Calibration Certificate
• Instruction Manual



#
1 - ¼" BSP (M) * 1/8" BSP (F) Parallel
2 - ¼" BSP (M) * 1/8" NPT (F)
3 - ¼" BSP (M) * ¼" NPT (F)
4 - ¼" BSP (M) * 3/8" BSP (F) Parallel
5 - ¼" BSP (M) * 3/8" NPT (F)
6 - ¼" BSP (M) * ½" BSP (F) Parallel
7 - ¼" BSP (M) * ½" NPT (F)
8 - 3/8" BSP (F) * ¼" BSP (F)



OTIONAL

• "Calpress" Calibration Software
• Calibration Certificate from NABL Accredited -


*as per ISO/IEC 17025:2005 Laboratory
